Station Report
Geoid velocity added
To correct for the vertical drift between reference frames, the velocity of the geoid height (VN) is now calculated and incorporated into the calculation of the orthometric height. View documentation to learn more.
Site Identification
| Name | Province | NTS map sheet | Unique Number | Provincial Identifier | Network |
|---|---|---|---|---|---|
| CAMB ACS-NS | Nova Scotia | 021H02 | NS50001 | 250001 | NSACS |
Station Coordinates
Changing these fields will auto-update the station coordinate information below.
The velocities are interpolated from the national Velocity Grid version 8.0.
| Latitude | |
|---|---|
| Longitude | |
| h (metres) | |
| Vφ (mm/y) | |
| Vλ (mm/y) | |
| Vh (mm/y) | |
| X (metres) | |
| Y (metres) | |
| Z (metres) | |
| Vx (mm/y) | |
| Vy (mm/y) | |
| Vz (mm/y) | |
| Zone | |
| Easting (metres) | |
| Northing (metres) | |
| h (metres) | |
| Scale | |
| Combined | |
| Convergence | |
| N (metres) | |
| H (metres) | |
| Published date Project ID | 2024-11-21 M24-002 |
| VN (mm/year) | |
| VH (mm/year) | |
| Equipot. of geoid model (W0, m2s-2) |
Vertical Data (levelling)
Use the value of H from the coordinates above.
Vertical Datum Separation
Use the value of H from the coordinates above.
Location
2013-06-06 (Jason Bond, SNSMR) 2014-02-21 (Jason Bond, SNSMR) Added address information above

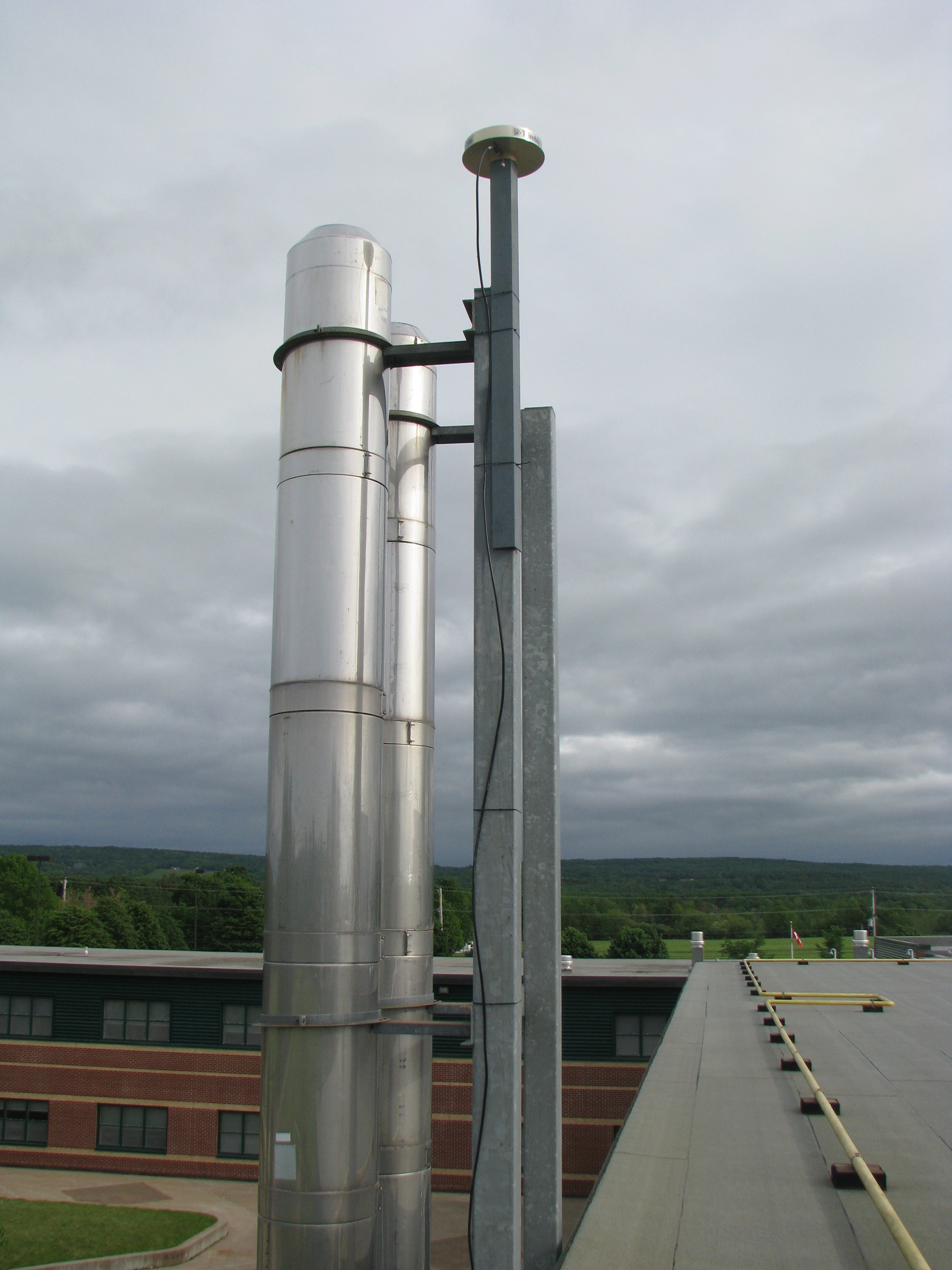

2013-06-06 (Jason Bond, SNSMR) at the top of a structural steel angle iron. The mast is attached to the structural steel of a chimney brace. The structural steel is attached to a concrete foundation. The geological characteristics are not known at the site. 2014-02-21 (Jason Bond, SNSMR) Reference mark changed to the threaded bolt at top of mast, 0.0771 m below SECO thread bolt. 2014-07-31 (Jason Bond, SNS) added monument inscription information 2015-01-23 (Jason Bond, SNS) NRCan #: NS50001 2018-04-10 (David Long, NS-ISD) Updated firmware and antennae
Equipment on site
| Model/Type | Start date | |
|---|---|---|
| Receiver | TRIMBLE NETR9 | 2017-04-22 05:53:00 |
| Clock | Internal | 2013-03-28 00:00:00 |
Antenna
| Model | Start date | Height (m) | Phase center offset (mm) | |||
|---|---|---|---|---|---|---|
| GPS L1 | GPS L2 | GLONASS L1 | GLONASS L2 | |||
| TRM59900.00 NONE | 2018-04-10 11:45:00 | 0.077 | 113.5 | 124.54 | 113.5 | 124.54 |
| TRM59900.00 NONE | 2013-06-21 00:00:00 | 0.077 | 113.5 | 124.54 | 113.5 | 124.54 |
| TRM59900.00 NONE | 2013-03-28 00:00:00 | 0.000 | 113.5 | 124.54 | 113.5 | 124.54 |
