Station Report
Geoid velocity added
To correct for the vertical drift between reference frames, the velocity of the geoid height (VN) is now calculated and incorporated into the calculation of the orthometric height. View documentation to learn more.
Site Identification
| Name | Province | NTS map sheet | Unique Number | Provincial Identifier | Network |
|---|---|---|---|---|---|
| SHEL ACS-NS | Nova Scotia | 020P14 | NS50005 | 250005 | NSACS |
Station Coordinates
Changing these fields will auto-update the station coordinate information below.
The velocities are interpolated from the national Velocity Grid version 8.0.
| Latitude | |
|---|---|
| Longitude | |
| h (metres) | |
| Vφ (mm/y) | |
| Vλ (mm/y) | |
| Vh (mm/y) | |
| X (metres) | |
| Y (metres) | |
| Z (metres) | |
| Vx (mm/y) | |
| Vy (mm/y) | |
| Vz (mm/y) | |
| Zone | |
| Easting (metres) | |
| Northing (metres) | |
| h (metres) | |
| Scale | |
| Combined | |
| Convergence | |
| N (metres) | |
| H (metres) | |
| Published date Project ID | 2024-11-21 M24-002 |
| VN (mm/year) | |
| VH (mm/year) | |
| Equipot. of geoid model (W0, m2s-2) |
Vertical Data (levelling)
Use the value of H from the coordinates above.
Vertical Datum Separation
Use the value of H from the coordinates above.
Location
SHEL is a continuously tracking GNSS site of the NSACS network. The GNSS station is located on an antenna mast at Shelburne Regional High School. 415 Woodlawn Dr, Shelburne, NS.

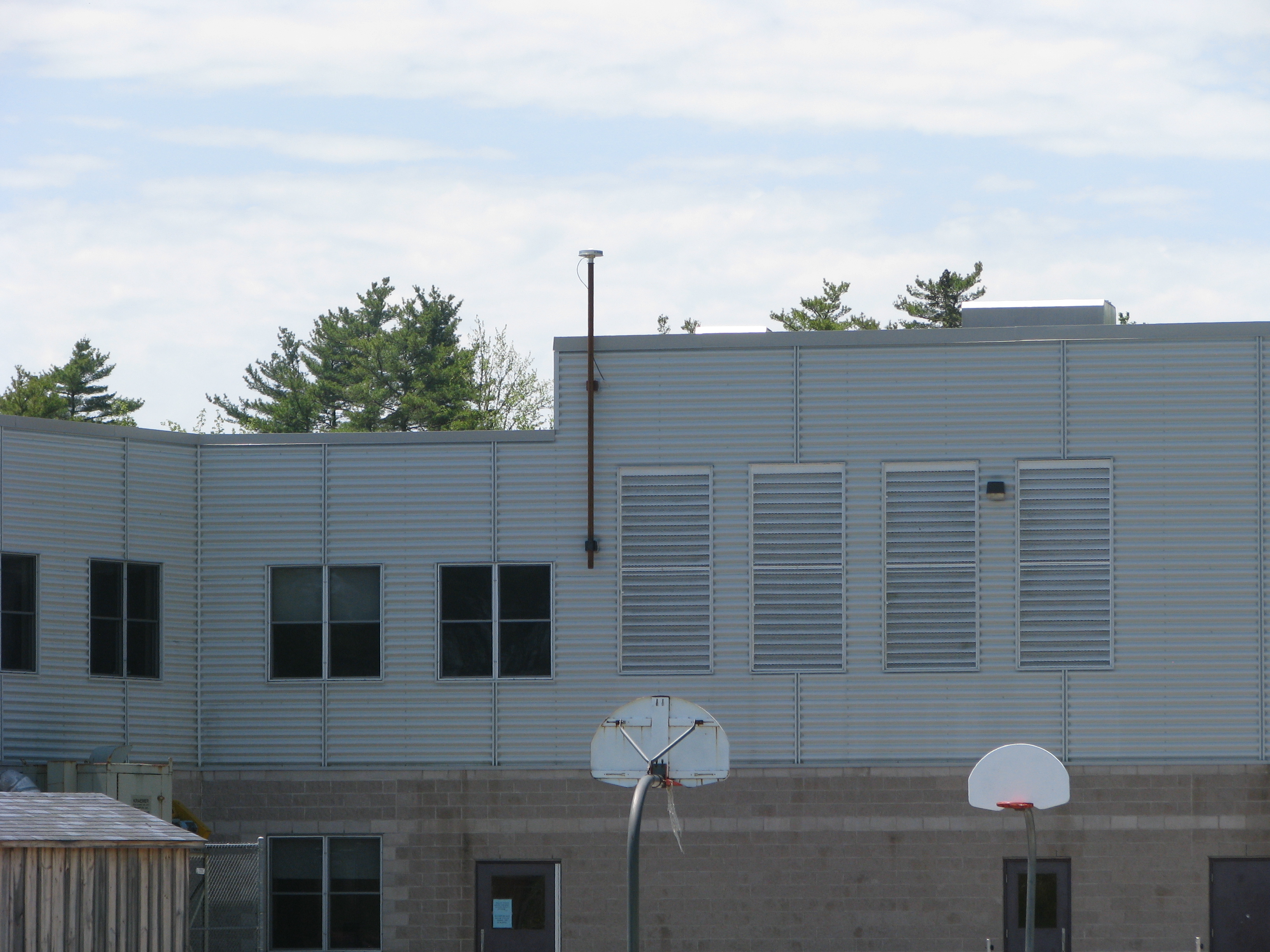

The GPS reference mark is a 5/8" threaded bolt at the top of an antenna mast made of structural steel. The steel mast (4.5 m) is attached to the cinder block, exterior wall of the school. The wall is attached to a concrete foundation. The geological characteristics are not known at the site. Reference mark changed to the threaded bolt at the top of the mast, located 0.0771 m below SECO thread bolt on 2014-02-21.
Equipment on site
| Model/Type | Start date | |
|---|---|---|
| Receiver | TRIMBLE NETR9 | 2017-04-22 06:36:00 |
| Clock | Internal | 2013-04-09 00:00:00 |
Antenna
| Model | Start date | Height (m) | Phase center offset (mm) | |||
|---|---|---|---|---|---|---|
| GPS L1 | GPS L2 | GLONASS L1 | GLONASS L2 | |||
| TRM59800.00 NONE | 2017-04-13 16:40:00 | 0.077 | 89.35 | 117.76 | 86.86 | 114.47 |
| TRM59900.00 NONE | 2013-04-09 00:00:00 | 0.077 | 113.5 | 124.54 | 113.5 | 124.54 |
